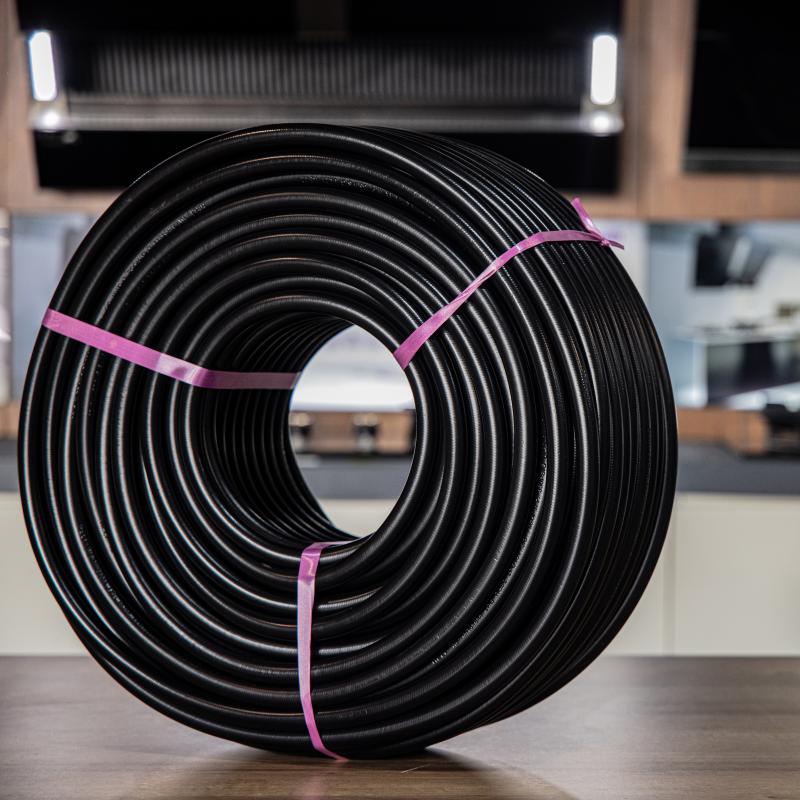

High Pressure Spray Hose
High Pressure Spray Hose
1.Use environmental high quality PVC particles, non-toxic, no odor, healthier.
2.Stable against kinking and twisting under working pressure.
3.Strong peeling adhesion between yarn and inner-outer tube, more durable.
4.High resistance to corrosion, anti-aging.
Description:
It is made of solid plastic which make it durable. It is comfort to hold & use, Multipurpose uses. The hose is widely used in high pressure washer, air compressors and pneumatic tools. In agriculture, the high-pressure PVC spray hose is used for spraying of pesticide, fungicide, fertilizer solution.
Features:
- High durability
- Anti-corrosion
- Bending resistance
- Strong toughness
- Abrasion performance
- High pressure withstands
- Low temperature resistance
- Flexible & Light weight, long thin structure which very convenient to user
Advantages:
- Use environmental high quality PVC particles, non-toxic, no odor, healthier.
- Stable against kinking and twisting under working pressure.
- Strong peeling adhesion between yarn and inner-outer tube, more durable.
- High resistance to corrosion, anti-aging.
Construction:
It is made of solid plastic which make it durable. Especially, both the high tensile strength of the very high tenacity yarn manufactured with the special twisted-yarn facility and the strong adhesive enables the high strength in pressure resistance. Moreover, the introduction of the state-of-the-art adhesion method makes the structure unchanged in spite of high pressure and several conditions.
- 1PLY-3LAYER
- WEAVE REINFORCED
- 2PLY-5LAYER
Packing modes : PE film +cardboard , woven bag,color box, carton box or customized .
Delivery time: 3 to 5 working days for samples, 15 to 20 days for plastic pipes and fittings. 30 to 40 days for brass fittings after receiving deposit.
Specification
ITEM NAME |
CODE NO. |
I.D.(mm) |
W.P.(BAR) |
B.P.(BAR) |
1PLY-3LAYER |
SY65 |
6.5 |
40 |
120 |
|
SY80 |
8 |
40 |
120 |
2PLY-5LAYER |
SYF65 |
6.5 |
50 |
160 |
|
SYF75 |
7.5 |
50 |
160 |
|
SYF85 |
8.5 |
50 |
160 |
|
SYF10 |
10 |
50 |
160 |
|
SYF13 |
13 |
50 |
150 |
WEAVE REINFORCED |
SYB65 |
6.5 |
60 |
200 |
|
SYB85 |
8.5 |
60 |
200 |
|
SYB10 |
10 |
60 |
180 |
|
SYB13 |
13 |
60 |
180 |
Application:
- Spraying agricultural chemicals
- Power sprayer;foggers
- Cleaning devices
Function:
Use for watering in garden agriculture, horticulture, sericulture, and also use for washing and cleaning car, bike, floor.
